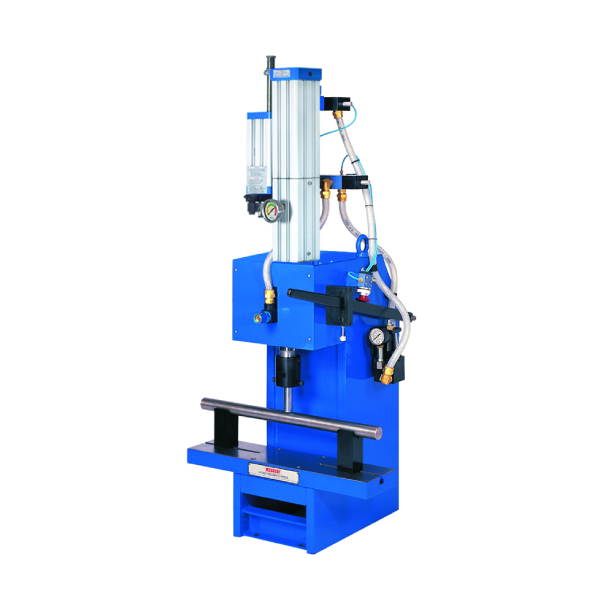

Series S – Shaft Straightening Presses
Series S – Shaft Straightening Presses
The Series S Shaft Straightening Presses are precision-engineered, cost-effective machines designed for safely and accurately straightening bent shafts with complete control over pressing force.
Product Description
Mercury’s Series S Shaft Straightening Presses provide an efficient and reliable solution for correcting bent shafts in manufacturing and maintenance applications. The manually operated hand lever offers precise control over the pressure regulator, enabling operators to gradually increase the pressing force until the desired straightening tonnage is achieved.
For repetitive production requirements, the press incorporates a force repeatability stopper, ensuring consistent results across batches. Designed with operator safety in mind, the system automatically retracts as soon as the hand lever is released, making it one of the safest and most user-friendly shaft straightening solutions available.
Salient Features
• Specifically Designed for Shaft Straightening Applications
• Precise and Gradual Force Control
• Hand Lever Operated Pressure Regulation
• Consistent Force Repeatability for Batch Production
• Automatic Retraction for Enhanced Operator Safety
• Cost-Effective and Energy-Efficient Design
• Reliable and Accurate Straightening Performance
• Easy Operation with Minimal Maintenance Requirements
• Compact and Robust Construction
• Suitable for Manufacturing, Repair, and Maintenance Applications
Power Stroke 3/2 Valve
| Part No. | Description | Seal Kit No. |
|---|---|---|
| S382 | 1/4″ 3/2 N.C. Pilot-Spring Valve for 2T & 4T Presses | SKS382 |
| S384 | 1/2″ 3/2 N.C. Pilot-Spring Valve for 8T, 15T & 30T Presses | SKS384 |
Rapid Approach 5/2 Valve
| Part No. | Description | Seal Kit No. |
|---|---|---|
| S682 | 1/4″ 5/2 Pilot-Spring Valve for 2T & 4T Presses | SKS682 |
| S684 | 1/2″ 5/2 Pilot-Spring Valve for 8T, 15T & 30T Presses | SKS684 |
3/2 Plunger Valve
| Part No. | Description | Seal Kit No. |
|---|---|---|
| S3121 | 1/8″ 3/2 Normally Closed Plunger-Spring Valve | SKS3121 |
Plunger Operated Regulator
| Part No. | Description | Seal Kit No. |
|---|---|---|
| RGS2 | 1/4″ Regulator for Shaft Straightening Press | SKRGS2 |
| RGS4 | 1/2″ Regulator for Shaft Straightening Press | SKRGS4 |
Spare Seal Kit
| Part No. | Description |
|---|---|
| 90-048 | Seal Kit for Press Cylinder Model No. N021 & N024 |
| 90-049 | Seal Kit for Press Cylinder Model No. N041 & N044 |
| 90-050 | Seal Kit for Press Cylinder Model No. N081 & N084 |
| 90-051 | Seal Kit for Press Cylinder Model No. N151 & N154 |
| 90-052 | Seal Kit for Press Cylinder Model No. N301 & N304 |
Power Stroke Change Over Flow Control Valve
| Part No. | Description | Seal Kit No. |
|---|---|---|
| F1 | 1/8″ Straight Flow Control Valve | SKF1 |
Tonnage Gauge
| Part No. | Description |
|---|---|
| 20-1328-2T | For 2T ‘A’ Series Cylinders |
| 20-1324-4T | For 4T ‘A’ Series Cylinders |
| 20-955-8T | For 8T ‘A’ Series Cylinders |
| 88-009-15T | For 15T ‘N’ Series Cylinders |
| 88-009-30T | For 30T ‘N’ Series Cylinders |
