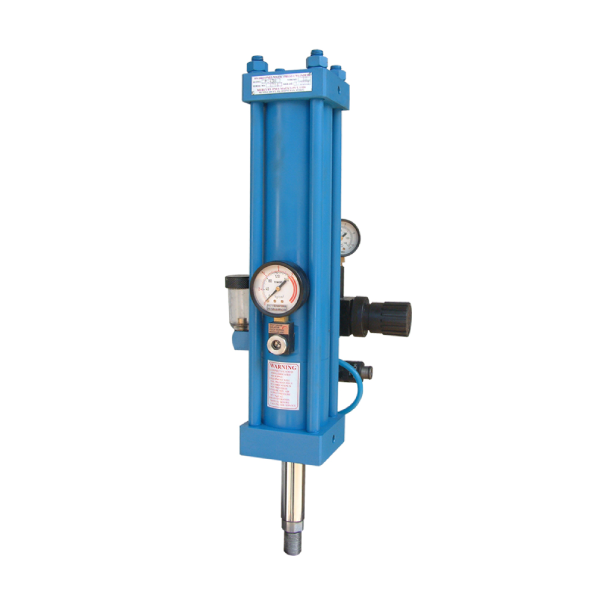

Series H Hydro Pneumatic Press Cylinders
Series H Hydro Pneumatic Press Cylinders
Mercury’s Series H Hydro Pneumatic Press Cylinders are specifically engineered for automated pressing applications where the workpiece is automatically fed into the die and only a short loaded stroke is required. By eliminating the conventional low-force approach stroke, the system generates an immediate high-force power stroke, significantly reducing cycle time and improving production efficiency.
Product Description
The Series H offers compact construction, precise force delivery, and lower air consumption, making it ideal for high-speed manufacturing environments. Available in capacities ranging from 2 to 30 tonnes, these cylinders are suitable for punching, stamping, riveting, crimping, and assembly operations that demand reliable high-force performance with minimal operating costs.
Salient Features
• Direct High-Force Power Stroke
• No Low-Force Approach Stroke
• Faster Cycle Times and Increased Productivity
• Compact and Space-Saving Design
• Energy-Efficient Operation
• Lower Air Consumption
• High Force Output with Precise Performance
• Ideal for Automated Feeding Applications
• Reduced Operating and Maintenance Costs
• Available in Multiple Capacities from 2 to 30 Ton
• Suitable for High-Speed Industrial Press Operations
Output Forces (Kgf.) at Inlet Air Pressure of 5 Bars
| Tonnage | 2T | 4T | 8T | 15T | 30T |
|---|---|---|---|---|---|
| Approach | 100 | 230 | 400 | 750 | 925 |
| Power | 2000 | 4200 | 8000 | 15000 | 20000 |
| Return | 75 | 200 | 300 | 575 | 775 |
Model-wise Air Consumption at 5 Kg/cm²
| Model No. | Ton | Stroke (mm) | Air Consumption (Litres NL) Per Cycle |
|---|---|---|---|
| P020H | 2 | 4 | 2.2 |
| P023H | 2 | 10 | 5.6 |
| P040H | 4 | 4 | 4.8 |
| P043H | 4 | 10 | 11.5 |
| P080H | 8 | 4 | 10 |
| P083H | 8 | 10 | 23.5 |
| P150H | 15 | 4 | 17.5 |
| P153H | 15 | 10 | 42 |
| P300H | 30 | 4 | 27.3 |
| P303H | 30 | 10 | 65 |
* Add Voltage & Connector Suffix While Ordering.
