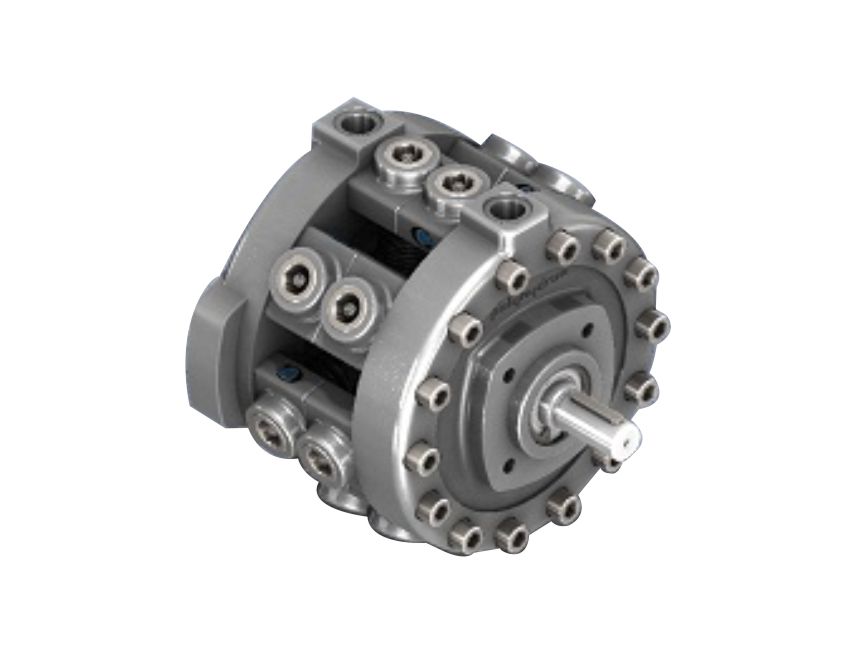

Radial Piston Pump 12R-E

Model 12R**** are rugged oil immersed type Radial Piston Double Pumps and have either 3, 5 or 7 pumping elements in each section of the pump.

Download PDF

These pumps are valve controlled therefore there no restriction on direction of rotation of the pump. Pumps with model code 12RE*** have extension shaft for through drive and are available with extension bracket assembly for coupling a pump having standard flanges as per ISO 3019/2 (Ref. datasheet no. D 09090).

They are available with 18 displacements and 3 pressure ratings. Flows can be combined internally or externally to feed one circuit or can be used independently to feed two circuits. Each section of pumps give fixed output per revolution of the shaft.
