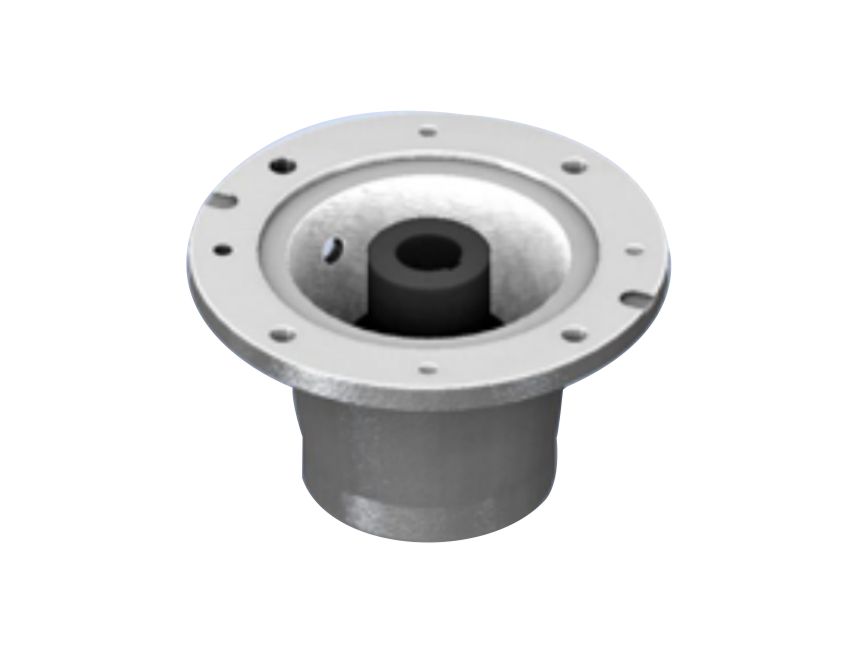

Bell Housing Assembly BHP

The bell housing series BHP are designed for coupling Polyhydron make Radial Piston pumps series 1R, 2R, 11R and 12R to electric motors having metric flanges as per IS : 2223

Download PDF

These bell housings, along with the resilient shaft couplings provide good shaft alignment and help in reducing undue load on the pump and motor bearings as well as vibration and noise

Technical specification :
Construction – Cast iron housing with flexible coupling
Mounting style – Flange mounting.
Mounting position – No limitations.
Flexible coupling – Spider type.
Working temperature – -20° to +70°C
Mass (kg.) – For 1R / 2R :
