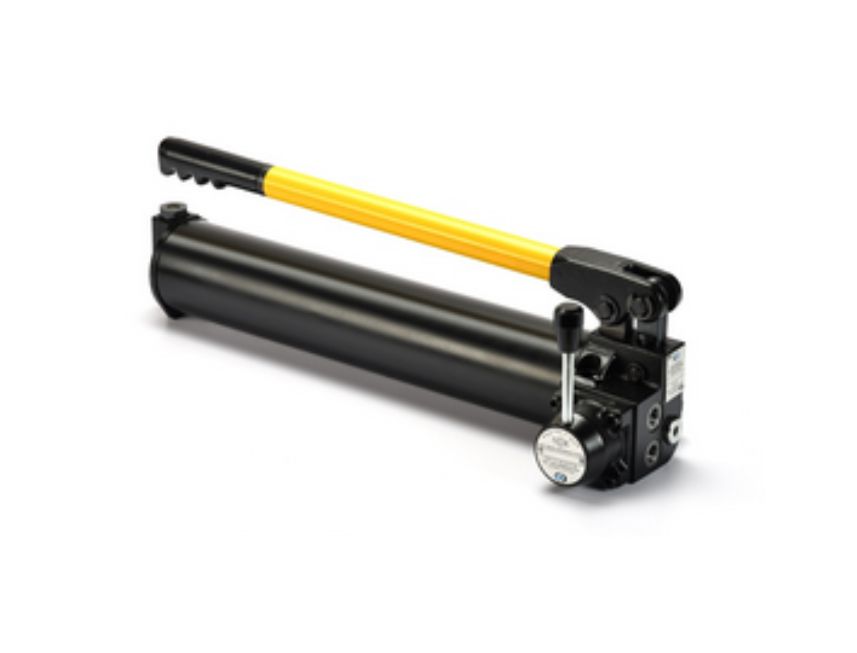

Hand Pump with DC Valve HP-D
Hand pump model HP*-D are compact heavy duty pumps designed for industrial applications like operating small presses, fixtures as well as providing source of oil for hydraulically operated emergency equipments.
Product Description
These hand pumps are equipped with integral Rotary Directional Control Valve with two outlet ports for switching of the flow between the two sides of a double acting cylinder. The Rotary valve has pressure holding ability.
Technical specifications :
Construction : Sealed piston with ball type suction and delivery valve.
Hydraulic medium : Mineral oil.
Maximum working pressure : Refer table no.1
Displacement : Refer table no.1
Oil tank capacity : 1.25 L
Oil tank displacement : 0.8 L
Force required at the end of the pump hand lever
at max. pressure (Approx) : Refer table no.1
Viscosity range : 10 cSt to 380 cSt
Fluid temperature range : -20°C to +70°C
Fluid cleanliness requirement : ISO 4406 20/18/15 or better.
Mass (Approx) : Without Oil – 9 kg.
