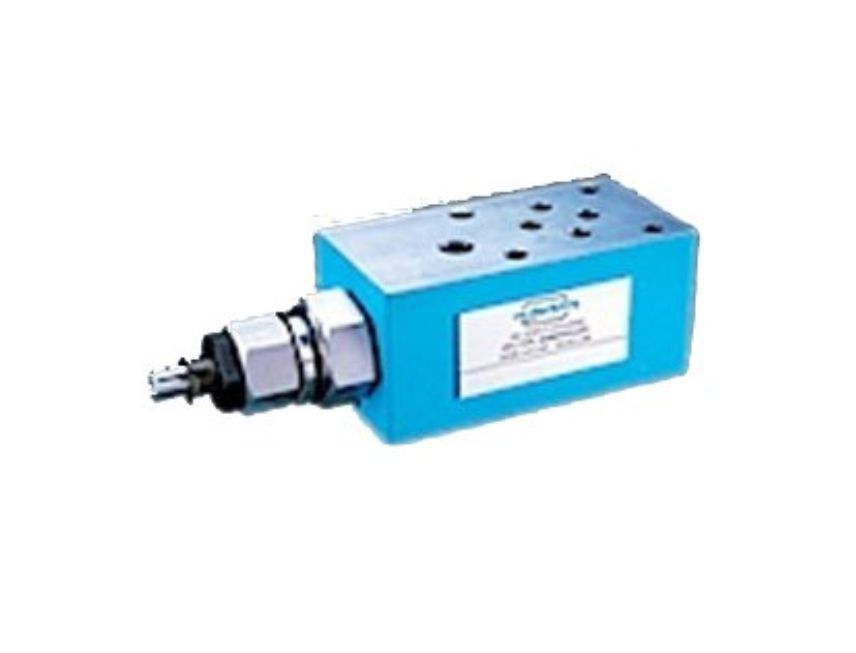

Modular Reducing Valve MPPM
Valve model MPPM*06 are Pilot operated pressure reducing valves, offering reduced pressure at it’s out let port.
Product Description
The pressure adjustment can be made by loosening the lock nut and turning the setting screw in clock wise direction to increase the pressure. The interface conforms to ISO 4401, Size 06.
Technical specifications :
Construction ……………………………..Pilot operated, Modular ( Stakable )
Mounting style ………………………….Conforming to ISO 4401 – AB – 03 – 4 – A
Mounting position ………………………Optional.
Direction of flow …………………………As indicated by the hydraulic symbol.
Operating pressure ……………………… 315 bar for all ports.
Viscosity range …………………………10 cSt to 380 cSt.
Fluid temperature range ………………-10 degree C to +80 degree C.
Maximum operating pressure ……….Refer Table no.1.
Nominal flow handling capacity ………30 lpm.
Nominal leakage flow at ‘ T ‘ port ……~ 0.4 l/min. while in operation.
Mass ………………………………………. 1.5 Kg. ~
Reverse flow ……………………………… Possible, if pressure does not exceed 90% of set pressure on the valve.
