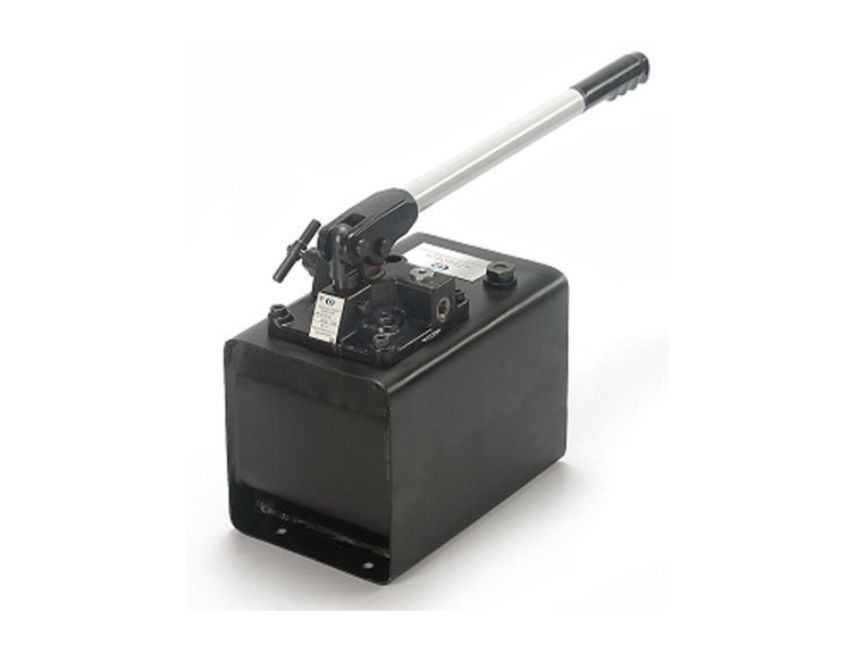

HP5012-16-ST
Feed and Power hand pump is meant for applications where initial travel of the Cylinder / Jack, to which it is connected is under no load or very low load.
Product Description
The pump provides considerably high displacement under low pressure for rapid travel of the Cylinder / Jack and then automatically changes to low displacement when pressure starts rising (above 30 bar), thereby reducing the efforts required to operate the pump. The pump has built in Relief valve (factory set at maximum pressure) as a standard feature for safety of pump as well as the equipment connected to it. The pump also has a Release valve to retract the Cylinder / Jack under external force. The telescopic collapsible handle of the pump is meant for shorter hand movement, when working at low pressure.
It also makes the pump compact for transportation. To reduce the force applied by hand, the handle should be extended. The pump also has an additional port for connecting a pressure gauge, if required.
