2TCL10

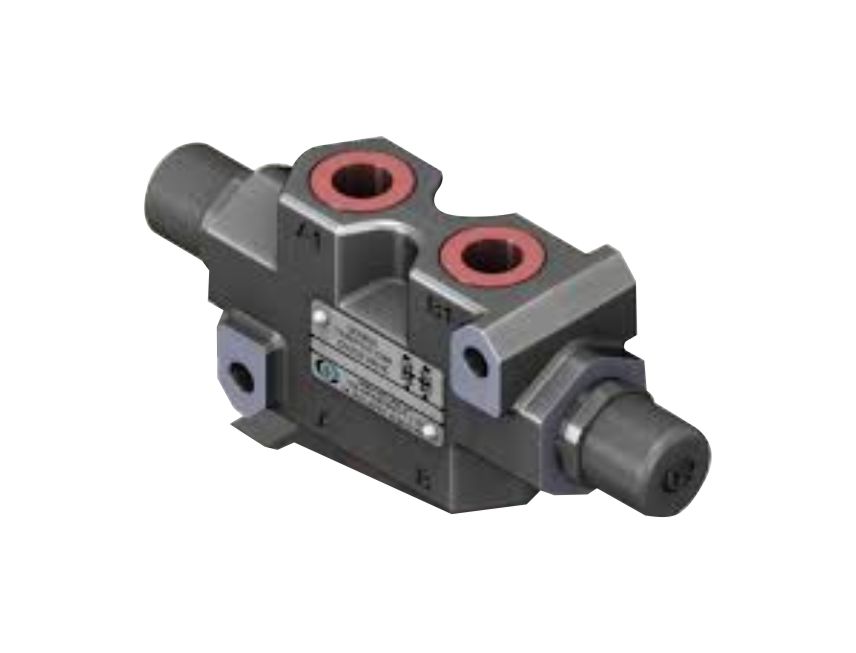

Double throttle check valves model 2TCL10 are meant for controlling flow in one direction in circuit by simple throttling of flow.
Product Description
Reverse flow is free and is independent of throttle condition in opposite direction in same path. The valve is available with throttle check valve facility on either A port, B port or A and B ports. These are non-pressure compensated flow control valves and therefore offer constant flow for a given setting, only if the pressure drop across the throttled passage is constant.
The valve can be converted from meter-in condition to meter-out condition by simply rotating the body along its longitudinal axis by180 degree, while being installed. Rotation of the throttling screw in clockwise direction, increase the pressure drop in the path. For locking the setting, a check nut is provided. For proction of the setting, a protective cap is provided.
