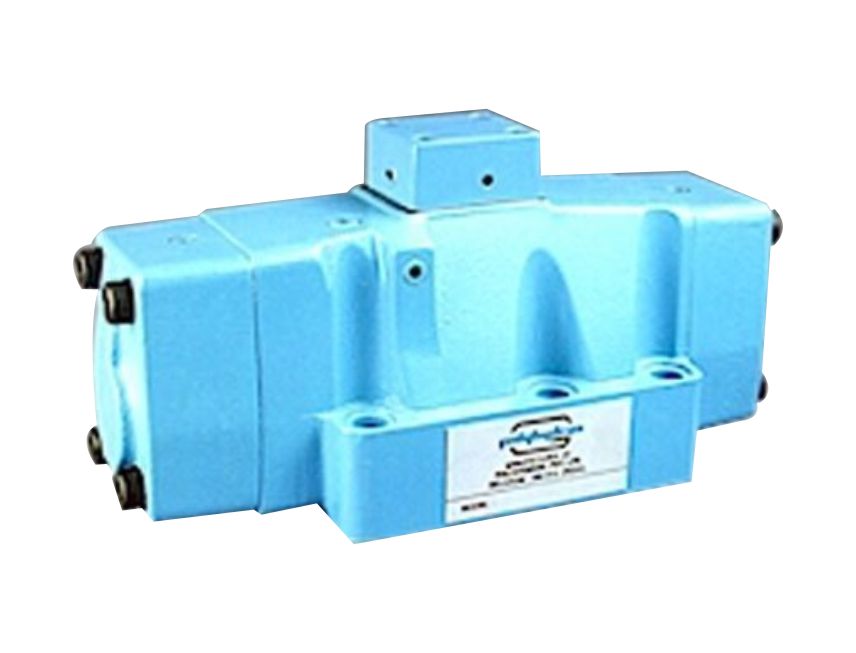

Pilot DC Valve 4DP20
Available as spring centered, spring offset Valve mounting interface conforms to International and National standards.
Product Description
Technical specification :
Construction …………………………………………….Spool type
Mounting …………………………………………………Subplate mounting as perISO 4401 – AE – 08 – 4 – A andIS – 10187 – 20 mm. diameter nominal port.
Mounting position …………………………………….. Optional
Flow direction ………………………………………….. As per spool type.
Operating pressure …………………………………..For port P, A, B, X and Y …. 350 barFor port T …………………….. 250 bar
Minimum pilot pressure …………………………….. 5 bar
Hydraulic medium ……………………………………. Mineral oil
Viscosity range ………………………………………… 10 cSt to 380 cSt.
Fluid temperature range …………………………… -20 °C to +70 °C
Fluid cleanliness requirement ……………………. As per ISO 16/13 or better.
Maximum flow handling capacity ……………….. Refer performance curves.
Mass ……………………………………………………… 17.5 kg. APPROX.
