MXG462S

Product Description

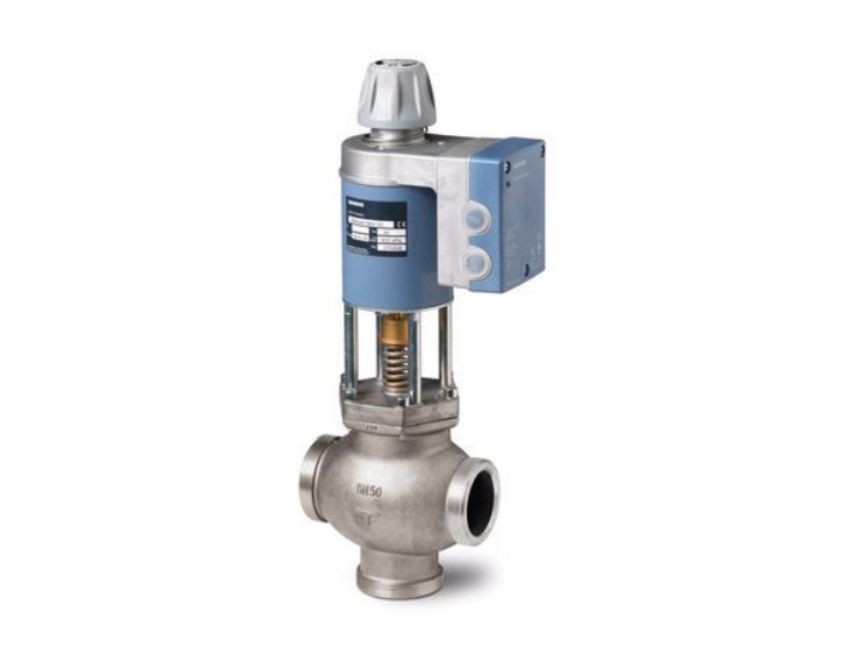

MXG462S Modulating Control Valves with Magnetic Actuator Suppliers in Chennai
Description :
· Short positioning time (< 2 s), high-resolution stroke (1 : 1000)
· Selectable valve characteristic: equal-percentage or linear
· High rangeability
· Operating voltage AC / DC 24 V
· Selectable standard signal inputs DC 0/2…10 V or DC 0/4…20 mA
· DC 0…20 V Phs phase-cut signal input for Staefa controllers
· Indication of operating state, visible from the outside
· Wear-free inductive stroke measurement
· Low friction, robust and maintenance-free
· Spring return facility: A ® AB closed when de-energized
· Positioning control, position feedback and manual control
· Parts in contact with medium in CrNi steel
· Applications with demineralized water upon request
