ELMAG 200R

We are engaged in offering a comprehensive range of ELMAG 200R Series to the clients. Our customers can avail these products in different specifications from us.

Download PDF

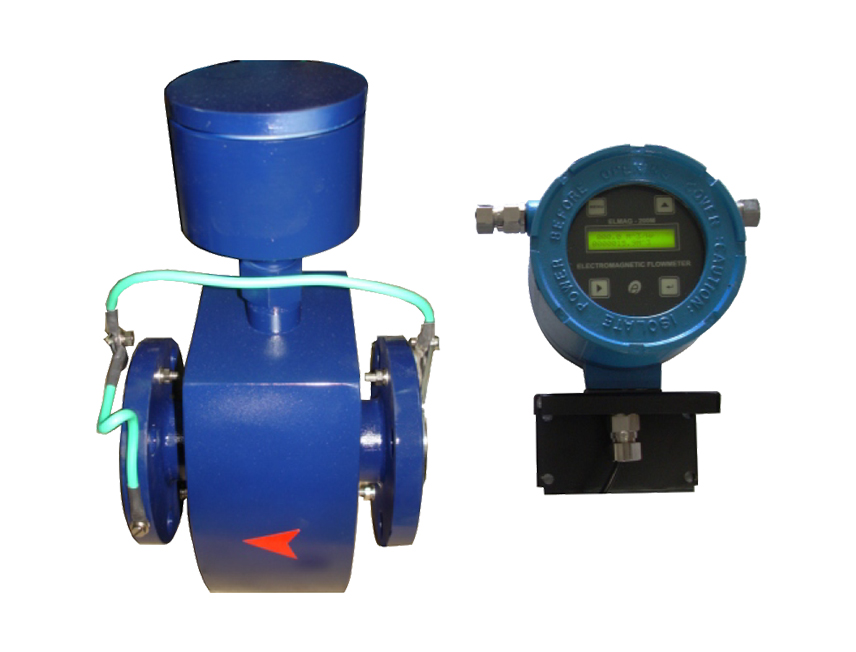

ELMAG 200R Series
Description :
Electronet’s series ELMAG-200R are micro-controller based full bore type electromagnetic flow transmitter with remote electronics specially used for various industrial applications. These flow transmitters accurately measures the flow rate of conductive liquids & slurries in closed pipes. Due to simple & rigid design, the flow transmitter is an obstruction less & maintenance free instrument in place of conventional mechanical flow measuring device. The use of ‘Pulsed DC’ technology offers highest ability & better measuring accuracy in the form of electrical signal 4 – 20 mA DC linearly proportional to volumetric flow. The instrument is based on Faraday’s law of electro magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage.
